When schools, parks departments, and municipalities host events, speed and safety matter. Whether it’s a Friday night football game, a weekend tournament, a community festival, or a graduation ceremony, the Speedy Bleacher System is engineered to deploy seating for 300 spectators quickly and securely using a self contained 12-volt hydraulic system. The SPBL4510 Speedy Bleacher transitions from transport mode to fully operational seating in 10 minutes—without complicated assembly or large crews.
Rapid Single-Person Deployment: Labor Savings & Operational Efficiency

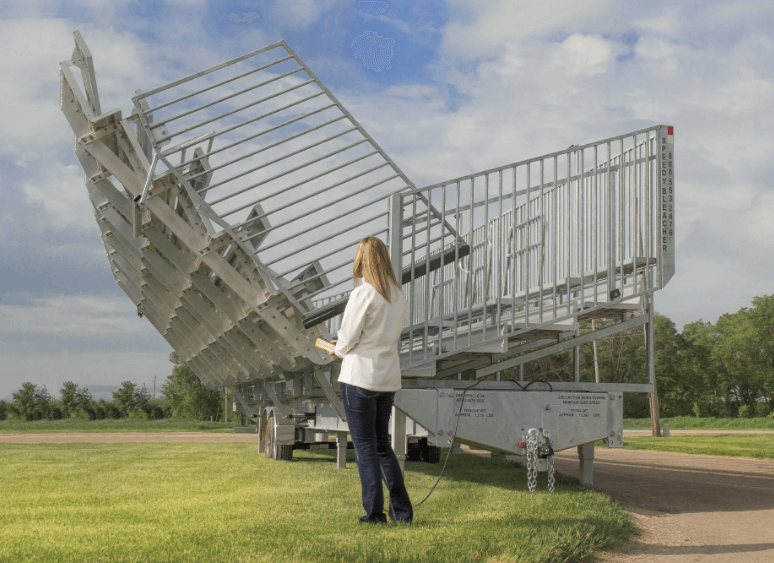

One of the most compelling benefits for schools and municipalities is that the Speedy Bleacher is designed for single-person setup. Traditional bleacher systems often require manual assembly, multiple workers, and extended setup times. A hydraulic trailer-mounted system eliminates those barriers.

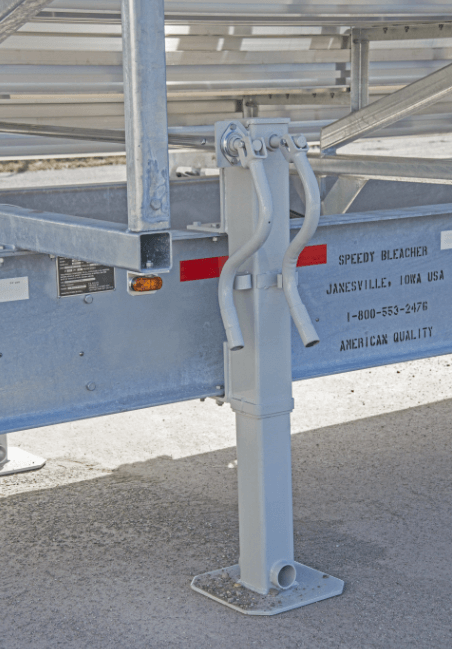

Stabilizing jacks operate from a full upright standing position, eliminating the need for stooping or kneeling to adjust numerous small jacks. This not only improves efficiency but also reduces strain and injury risk for staff.

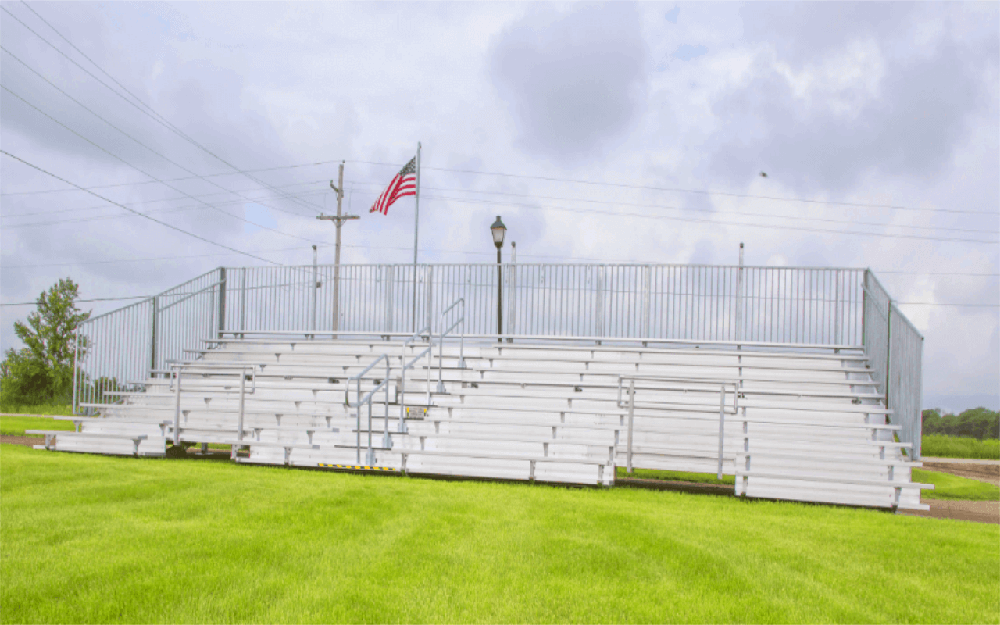

In as little as 10 minutes, a compact trailer transforms into event-ready seating. There are no loose components to manage and no complex structural assembly required onsite. The streamlined deployment process allows event coordinators to focus on logistics, safety checks, and crowd management rather than construction.
For athletic directors juggling multiple fields or parks departments coordinating back-to-back events, this time savings is more than a convenience—it’s a game changer that translates into cost savings.
Highway Towable Flexibility for Multi-Site Use

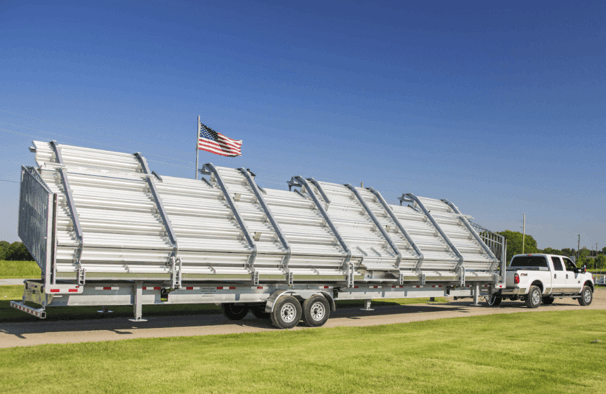

Mobility is one of the most powerful advantages of the Speedy Bleacher. Designed to be highway towable, it allows districts and municipalities to move seating wherever it’s needed. In transport mode, the unit measures approximately 50’1” in towing length and weighs between 12,020 – 13,170 pounds, maintaining road legal width and height parameters suitable for highway towing. It is equipped with:
- Electric brakes on all four wheels LED stop, turn, and clearance lights
- Heavy-duty safety chains and breakaway cable system
- The manual outlines proper towing procedures, including the use of a 2 5/16” ball hitch (pintle optional) and a charged breakaway battery system to ensure braking engagement if separation occurs.
Instead of purchasing permanent bleachers for every location, schools and municipalities can deploy seating exactly where it’s needed, when it’s needed. The result is greater utilization and stronger return on investment.
Safety Features, Compliance Standards & Dimensions
Portable doesn’t mean compromising on safety. Hydraulic trailer-mounted systems are engineered with structural integrity and regulatory compliance at the forefront.
Compliance ensures proper seat heights, tread depth, rise spacing, and guardrail requirements are built into the system design. For schools and municipalities, this reduces liability concerns and simplifies approval processes for public events.
Integrated Safety Mechanisms Modern systems typically include:
- Locking mechanisms that secure the structure once fully deployed
- Stabilizing outriggers to ensure balanced weight distribution

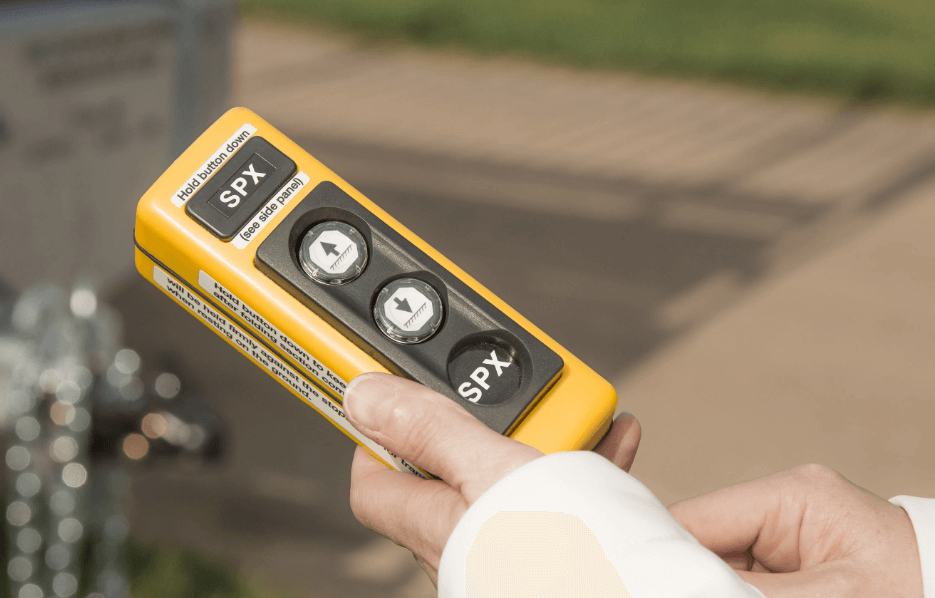

- Activation of the hydraulic system using a 50’ remote control cord.
- Each leveling jack is rated at 35,000 lb. capacity, mounted rigidly to provide high sway-load stability when fully occupied
- Double nominal 2"x10" Slip-resistant aluminum plank seating provide traction
- Guardrails and aisle rails where required
- The main frame features dual 16” rolled steel I-beams, with all steel components hot-dip galvanized after fabrication for corrosion resistance
- The folding section utilizes 6061 T6 heavy-duty aluminum, offering strength without excessive weight
These features work together to create stable, secure spectator seating across varying terrain.
Compliance Standards
Quality portable bleachers are manufactured in the USA to align with industry standards for safety and performance. This includes meeting structural and spacing guidelines commonly referenced by governing bodies such as:
- International Building Code
- International Code Council
Guardrails & Code Considerations
- 4” spaced vertical steel baluster guardrails discourage climbing
- Electric brakes and emergency breakaway system
- Designed to meet IBC 2003 code when proper options are included
- Optional features such as central aisles, handrails, and ADA wheelchair spaces allow facilities to enhance compliance and accessibility
Dimensions and Other Important Specifications
The Speedy Bleacher Systems offer:
- 7 Row, 9 Row and 10 Row Option- Additional Towable Bleacher Options Available
- 180-300 Seat Capacity Depending on Bleacher Size
- 24” row spacing for improved knee room
- 8" Rise
- 27' to 45’ Seating Length Depending on Rows
- 2"x10" Slip Resistant Planks
- 15-20 Fold/Unfold Cycles Per Charge
- 30,000 lb. - 210,000 lb. Load Capacity Depending on Bleacher Size
- Adding Aisle but will decrease seating by 24 seats (per aisle) on a 9 row and by 27 seats (per aisle) on a 10 row.
- Ability to Tow Using a 1/2 Ton Vehicle or Larger with a Hitch of Adequate Size Depending on Bleacher Size
- Tires with a Load Range "G", ST235-85R16 (Heavy Duty Trailer Tires) for Larger Bleachers
- LED Brake and Marker Lights
Streamlining Event Operations with Trailer-Mounted Bleachers
Investing in a hydraulic trailer-mounted bleacher system is more than just acquiring seating—it’s streamlining event operations, enhancing safety, and maximizing efficiency. With rapid deployment, single-person operation, and durable, code-compliant construction, these systems allow schools and municipalities to host events confidently and effectively. From athletic games to community festivals, going from trailer to event-ready in just minutes ensures every event runs smoothly, safely, and on schedule. As additional peace of mind we also offer a demo upon delivery. Contact us today to get you ready for your big event!
